Sonicision Curved Jaw

Hard Surface
Covidien Sonicision surgical gun with the curved-jaw head open, white and black body with a blue actuator, on a blue backdrop.

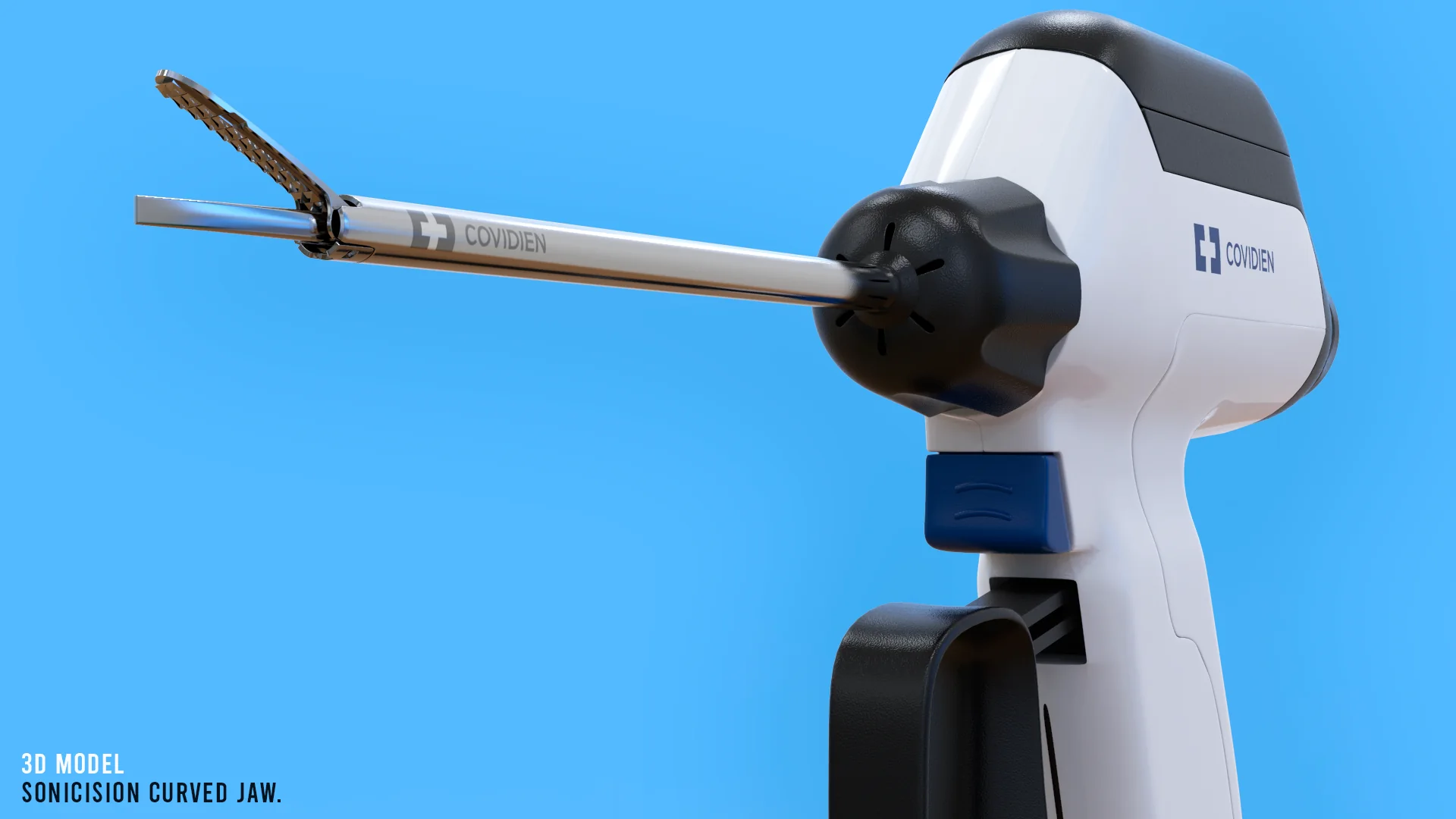

A high-poly model of the Covidien Sonicision cordless ultrasonic dissector, built for 3D visualisation. The piece of the product this was made for is the new head — the curved jaw at the end of the shaft. Modelled in Maya and rendered in Keyshot.

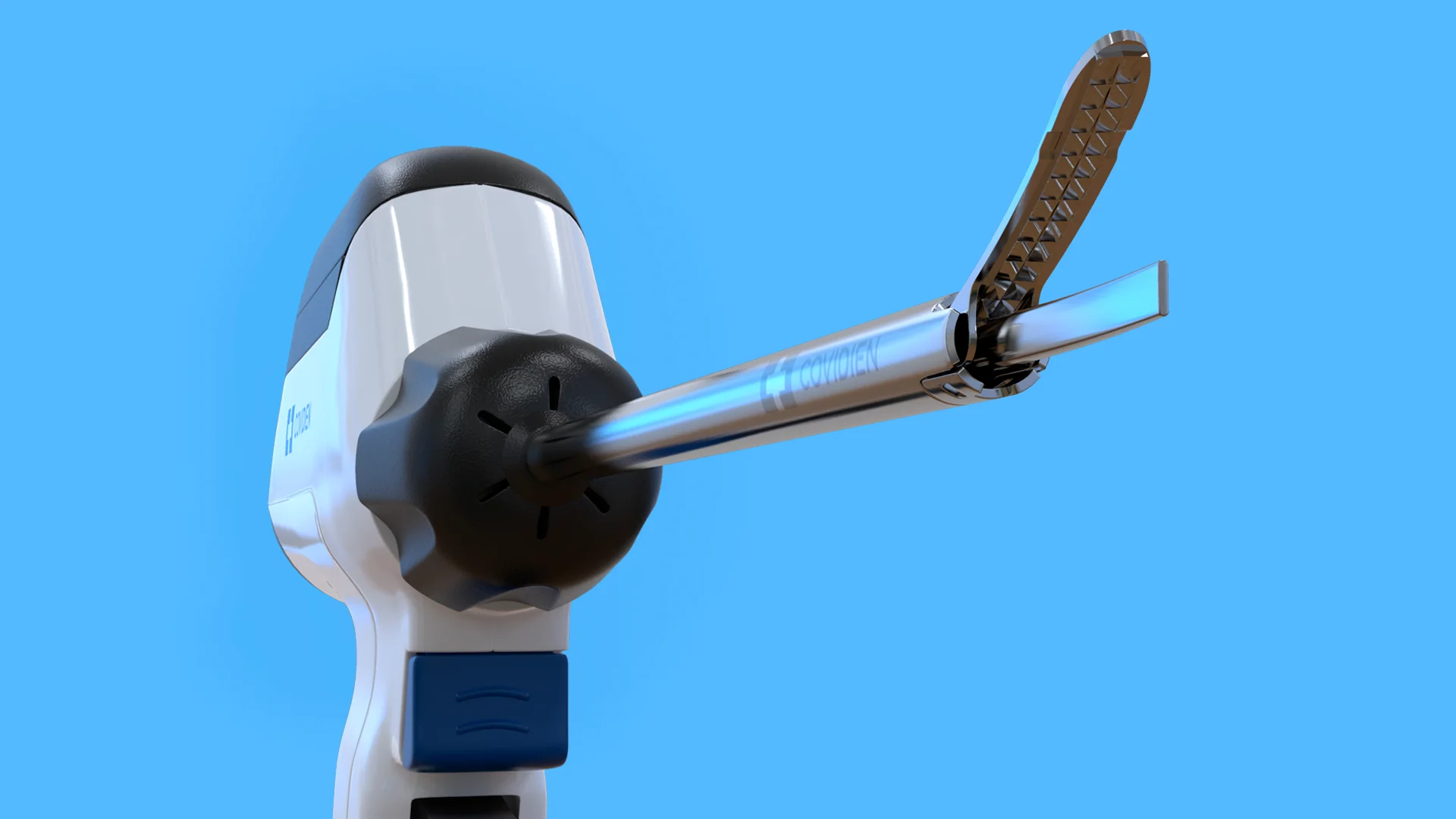

Close view of the curved-jaw head with the shaft, showing the serrated clamping surface.

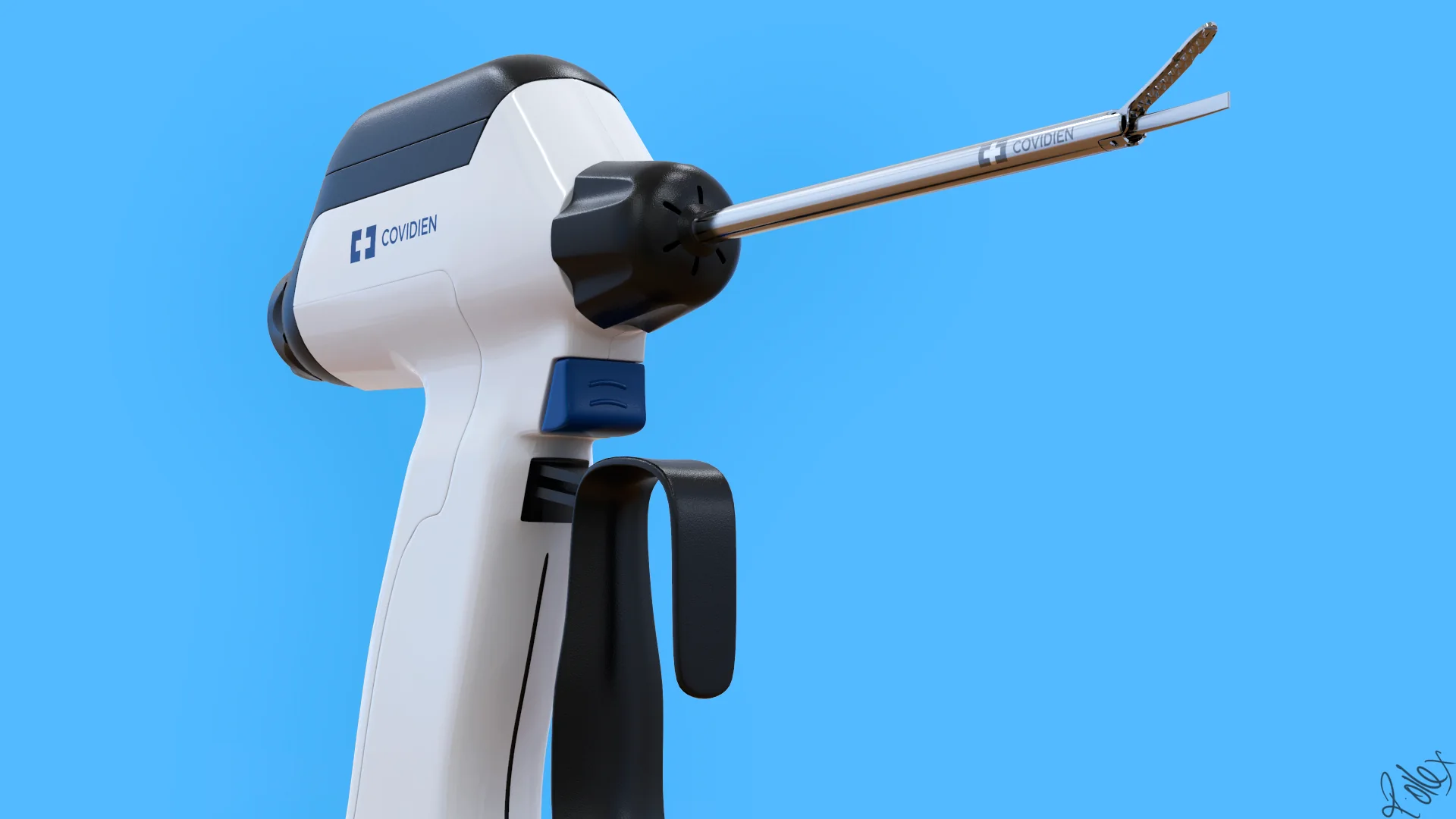

The Sonicision gun seen from the front three-quarter, jaw closed.

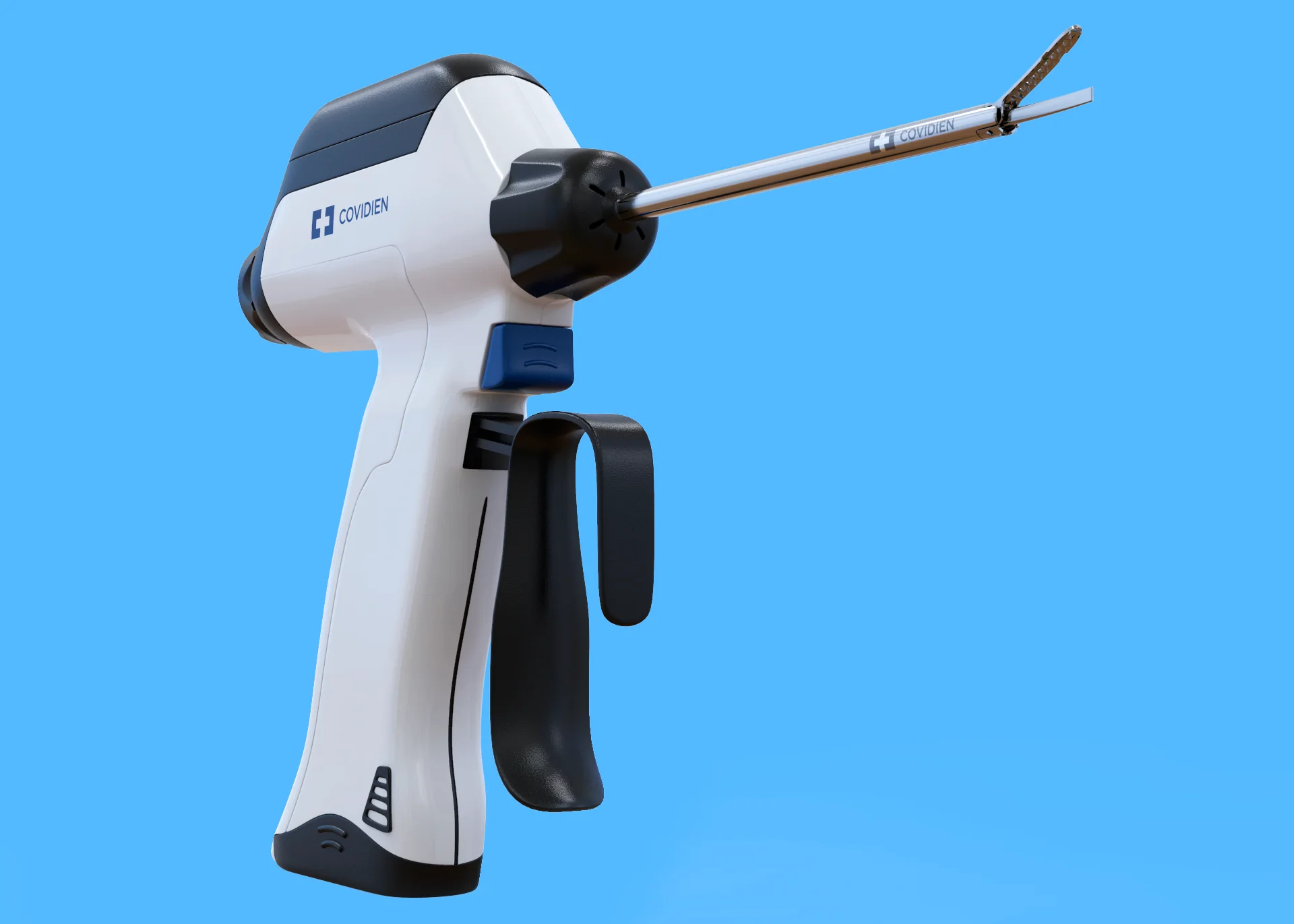

Detail of the rotation collar where the shaft meets the body of the instrument.

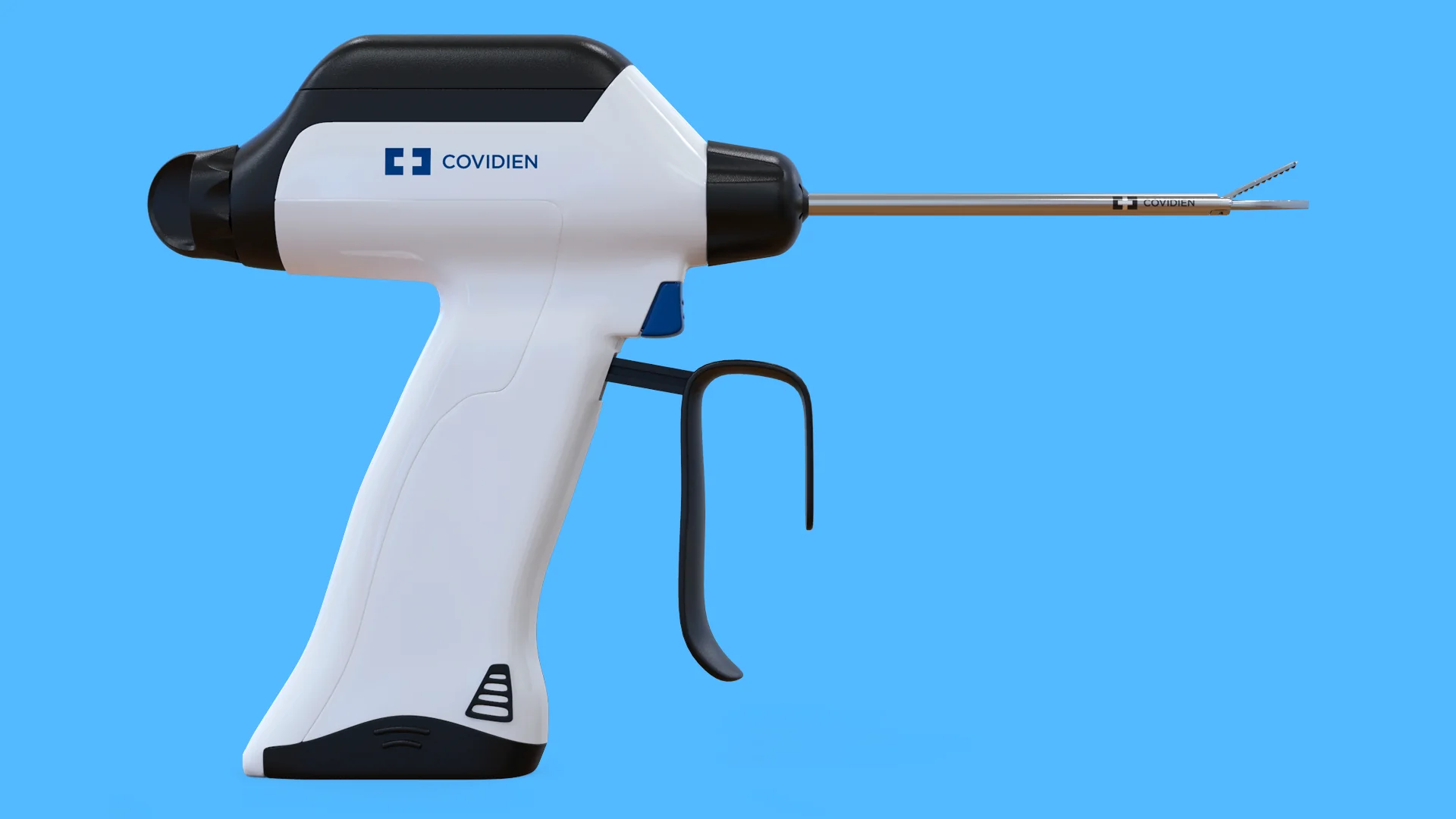

Full side profile of the Sonicision instrument, handle to jaw.

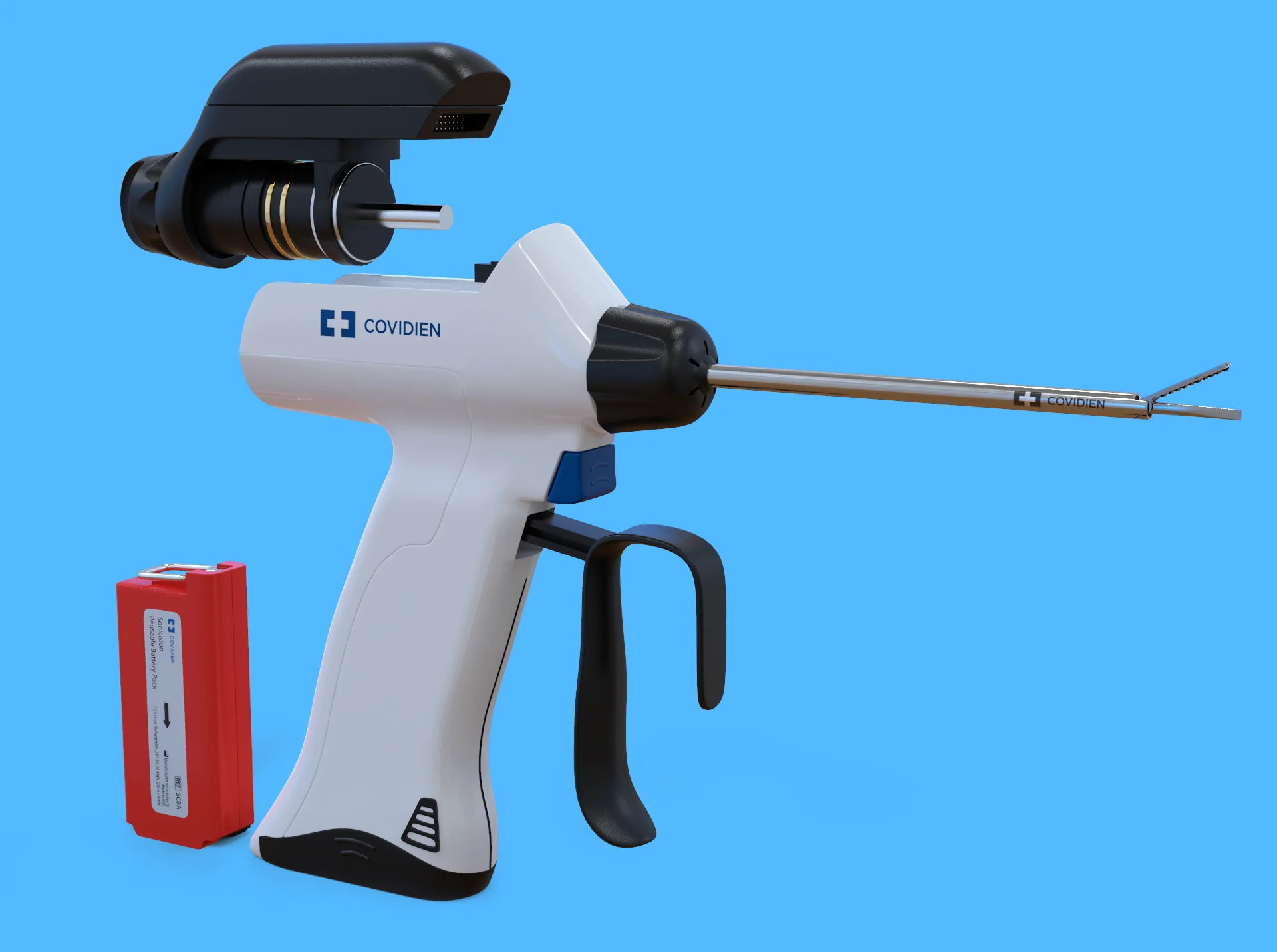

The complete instrument seen at an angle, showing body, battery housing and shaft.
Raised three-quarter view of the instrument from above.
Top view of the Sonicision showing the upper housing and controls.

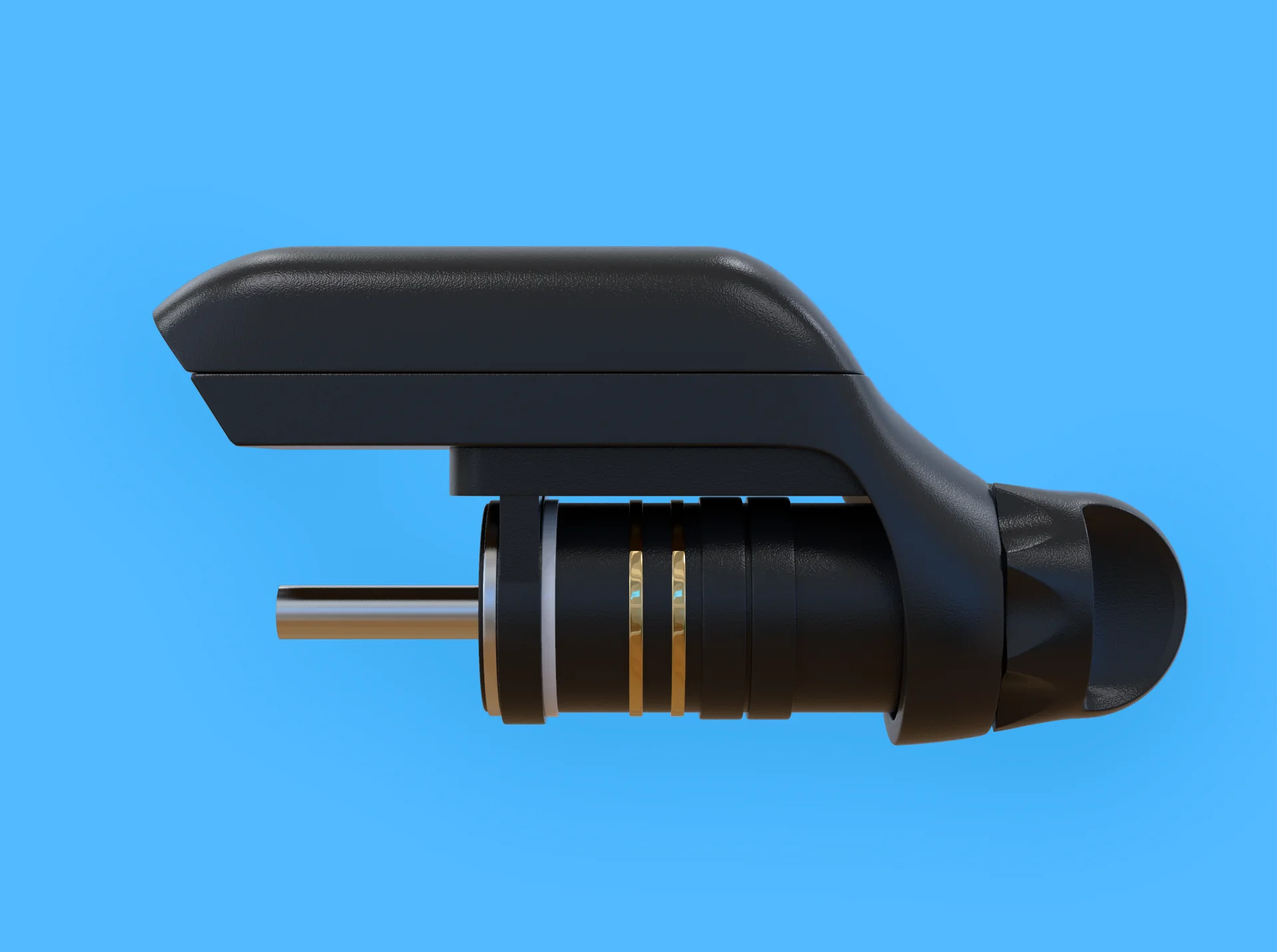

Side view of the instrument with the jaw closed.
Sonicision Curved Jaw — 3D model
Additional detail render of the curved-jaw head.

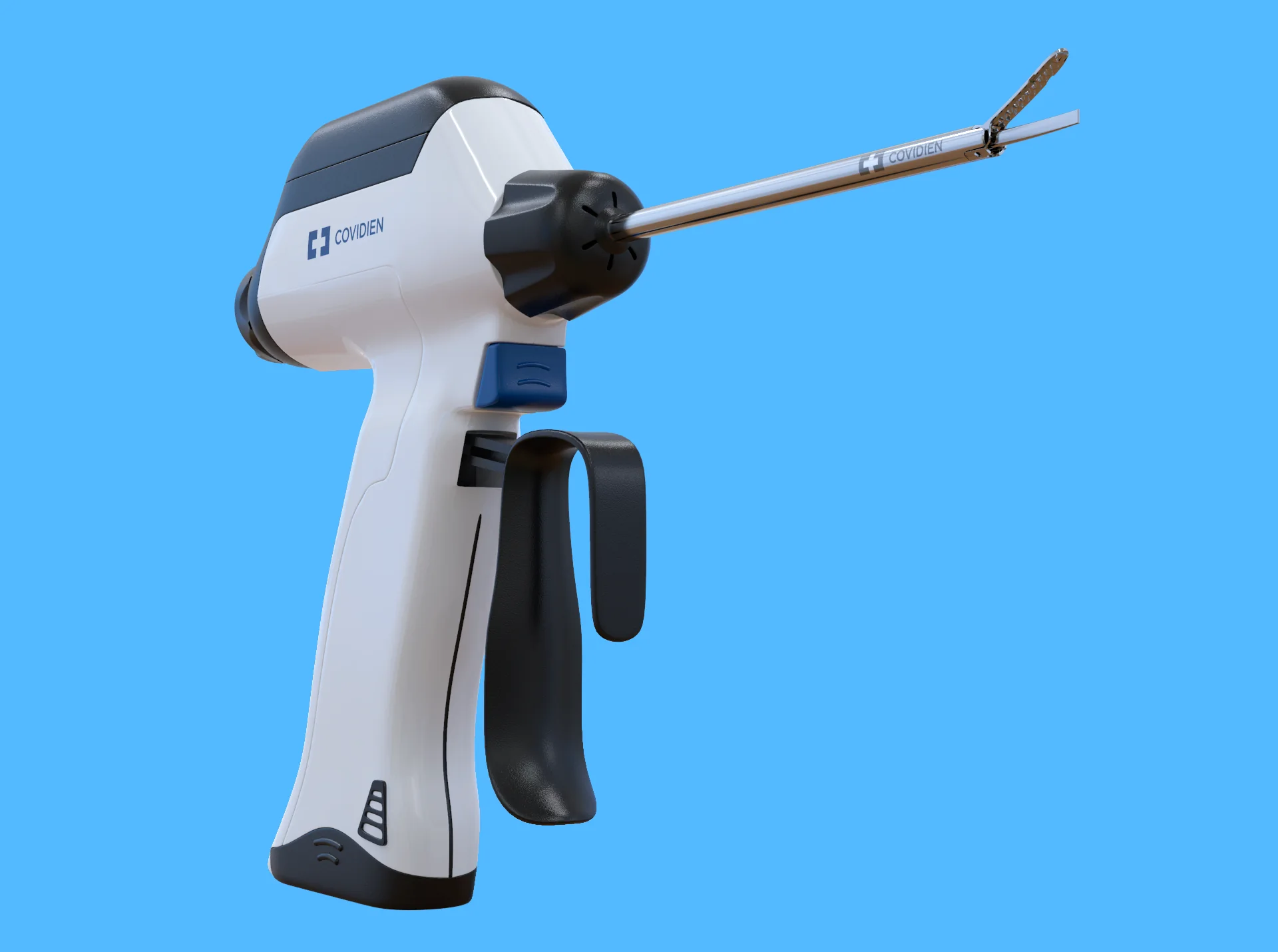

Three-quarter render of the full instrument.

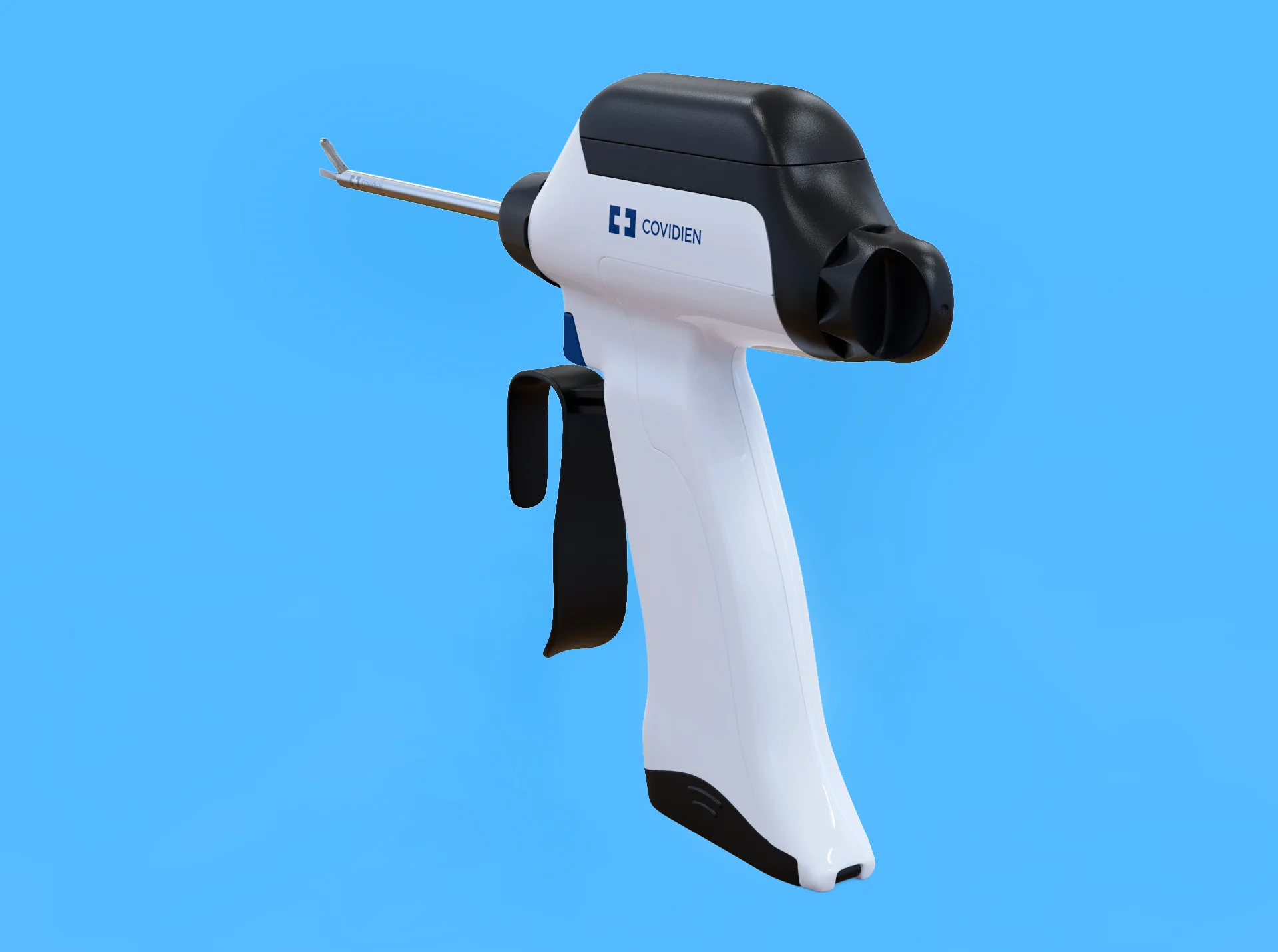

Rear profile of the instrument showing the battery end of the handle.

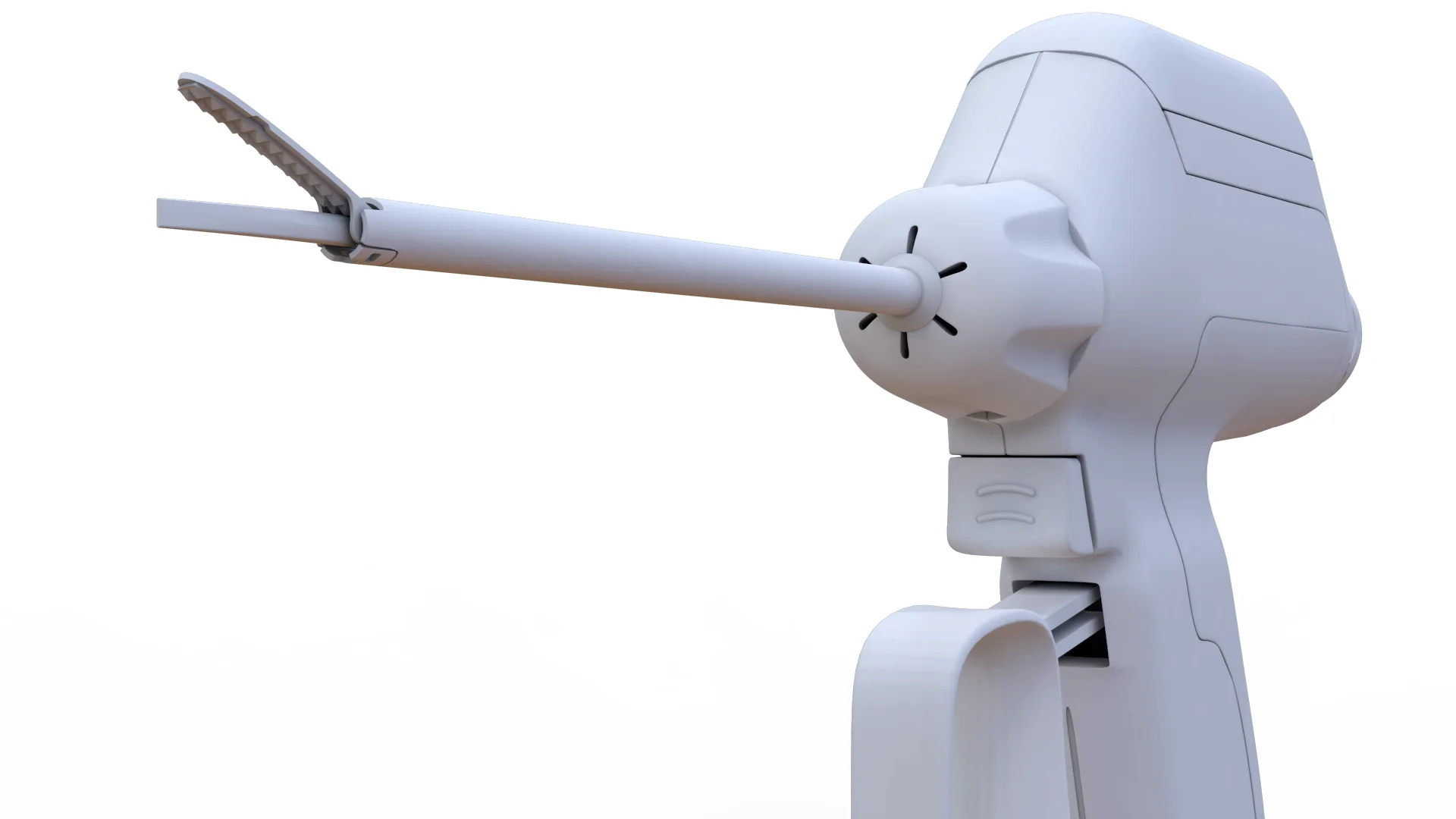

Clay render of the instrument, untextured white, showing form and panel breaks.
Clay passes with everything stripped back to white. With no colour or branding to carry the image, the silhouette and the panel breaks are all that hold it up — which is exactly why they are worth rendering.

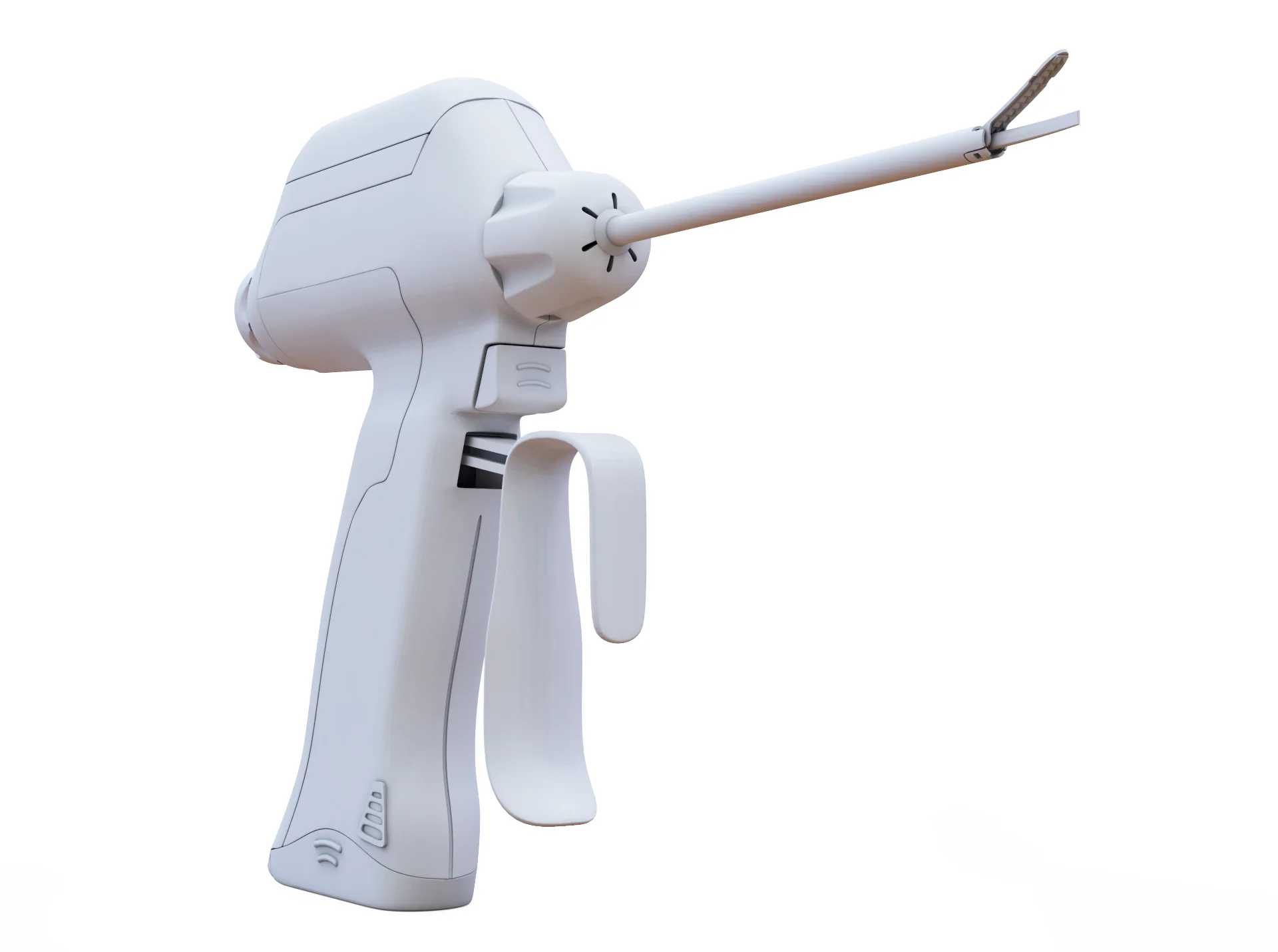

Clay render from a second angle, jaw open.

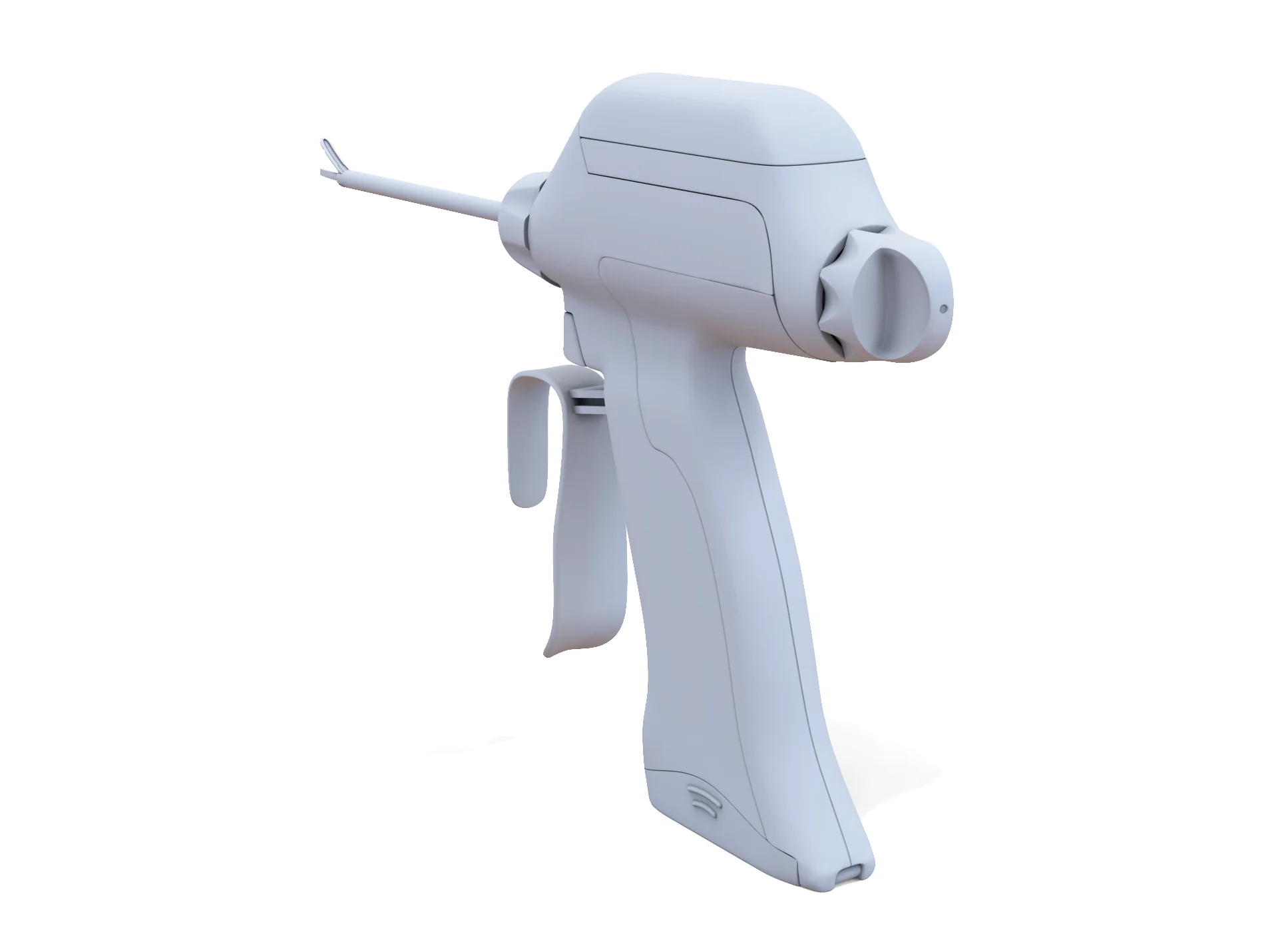

Clay render in profile, full length of the instrument.
